WiFi RS-422/485 Adapter
Send Inquiry
Email:
Contents:
Test Video
WiFi RS-422/485 adapter
Model: WA-485E
■ Support RS-485 Modbus RTU
■ Network standard: 802.11b, 802.11g, 802.11n(single stream)
■ Frequency band: 2.4GHz
■ Transmit power:
802.11b: 16 ±2dBm
802.11g: 14 ± 2dBm
802.11n: 13 ± 2dBm
■ Max. power consumption: 300mW typical
■ Minimum receiver sensitivity: -80dBm
■ Hardware encryption: WEP, WPA/WPA2
■ Antenna: SMA type 2 dBi dipole (Default)
■ 1 TCP Server to 4 TCP Clients Broadcast; Each client will unicast to the
server
■ Operational temperature: -40ºC to 85ºC
■ COM Port: 7,8 Data Bit, 1,2 Stop bit
● Baud rate: 1,200~921,600 bps
● Parity: None, Even, Odd
■ TCP Server/Client
■ NTP time mark added with UART data for Internet of Things (IOT)
applications
■ WiFi: AP, Station
■ Virtual COM port driver bundled
■ Toys, Robots, UVC
■ Health and wellness monitoring
■ Security
■ Industrial automation
■ Cloud
Applications:
Specifications:

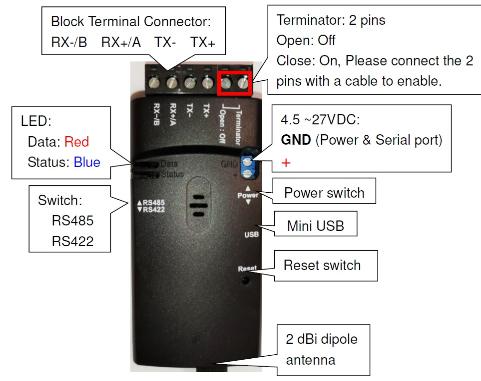

Profiles:

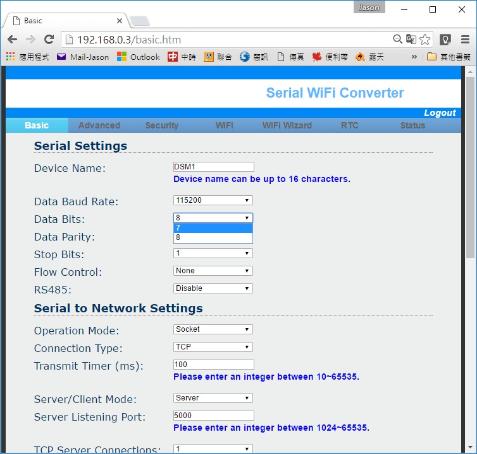

Web page configuration:

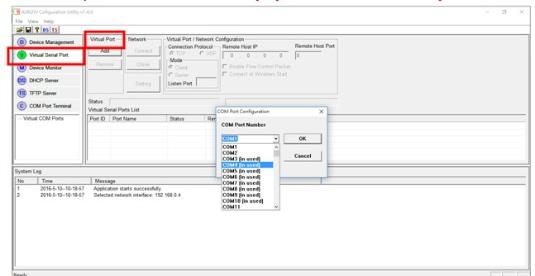

Virtual COM port driver bundled
Test APP
