BLE Sensor Tag
E-Mail:
©2018 All rights reserved by Uconnect

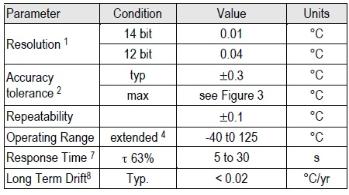

Temperature Specifications:

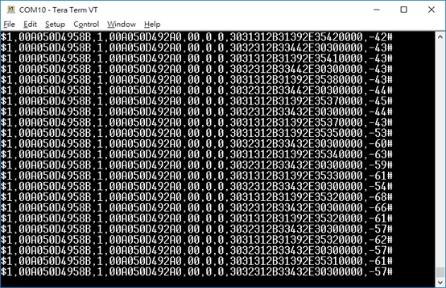

Packet Format-2: BLE sensor tag
Model: TH-485
The sensor will transmit the value via BLE beacon and
serial port, RS-232 or RS-485. The BLE beacon will be
received by the smartphone or BLE reader, please check
the "RTLS" page. The value include the sensor ID which
will support the IOT applications.
BLE Humidity and Temperature Sensor tag & RS-485 transmitter
Packet Format-1: RS-232 or RS-485

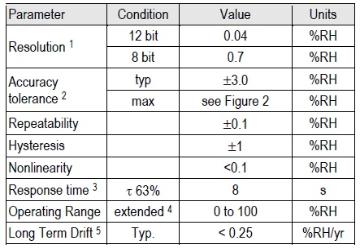

Humidity Specifications:

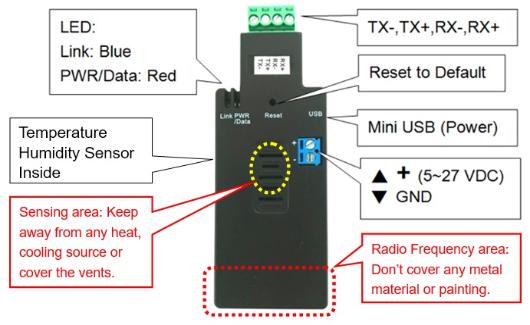

Top View:

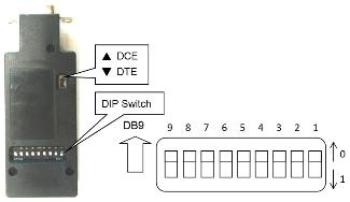

Rear View:
$<Sensor ID>,<Temperature>,<Humidity>%
RS-485 Modbus RTU: 9600,8-N-1
Read:
ID Function Data CRC16
1 Byte,0x01~0x7F 0x03 0x00 2 Byte
Response:
ID Function Data Length Data CRC16
1 Byte,0x01~0x7F 0x03 0x04 4 Byte 2 Byte
