Sub-1G RS-232 coverter
Send Inquiry
Email:
Contents:
User Manual
UHF RS-232 adapter
Model: S2U232E-433 (433 MHz, Option)
Model:
S2U232E-915 (915 MHz)
1. Baud Rate: Supports 1.2/2.4/4.8/9.6/19.2/38.4/57.6/115.2 Kbps
(Default: 9600 bps)
3. Parity: none
(Default)/Odd/even
4. Stop bit: 1
,1.5,2
5. Data bit:
7,8
6. Range:
200 m ,in open space, for reference only
7. Signal: TxD, RxD, GND, CTS/RTS (H/W Flow control)
8. RS-232 Interface: D-SUB 9-pin male
9. Antenna Gain: max.
-1 dBm
10.
Max. 13dBm max output power
11. Frequency: 4
33 MHz, 915 MHz (Default)
12. Hardware security engine (AES-128)
13. Dual RX FIFOs 144 bytes ; TX FIFOs 128 bytes
14. Power Supply: 5~40 VDC
15. Minimum current consumption of 12 mA in RX
mode, 33mA in TX mode
with 13dBm output
power
16. Operation Temperature: –40 °C to +85 °C
17. Dimensions: 81.6 mm (L) x 31.75 mm (W) x 17 mm (H)
Specifications:
E-Mail:
Sales@uconnect.com.tw
Male DB9:

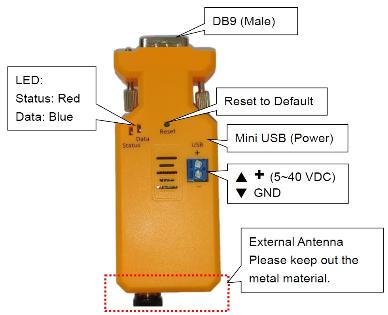

Top View:

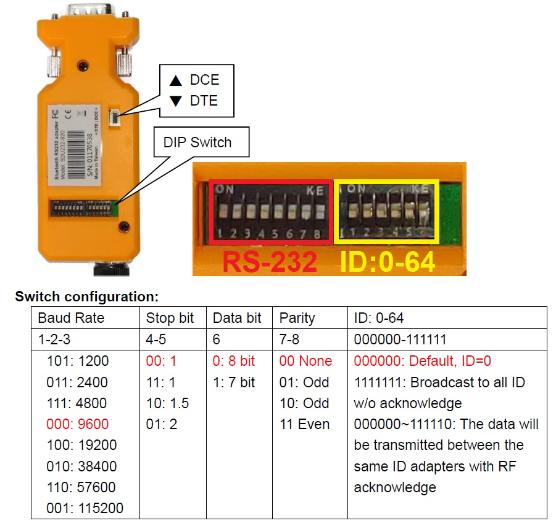

Rear View:
Applications:
- SCADA
- Automated meter reading (AMR)
- Home/Building/Factory Automation
- 2-way Medium-Data-Rate Application
- Wireless Sensor Network
- RF Remote Controller
- Consumer Electronics
- Low Power Wireless Communication
- Advanced Meter Infrastructure (AMI)
Support 1 to N
  Long range
Sub 1G, UHF, Mesh, Zigbee,IEEE 802.15.4g, 433 MHz, 915 MHz, 920 MHz, 922 MHz,

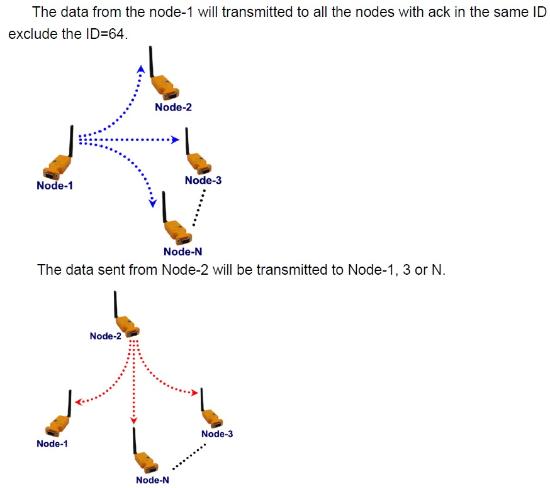

1 to Multi Communication:
Band option: Please contact the supplier for the customization.
- 916 ~ 930 MHz (Japan)
- 917 ~ 923.5 MHz (Korea)
- 902 ~ 928 MHz (North America)
- 863 ~ 870 MHz (EU)
- 779 ~ 787 MHz (China)
- 470 ~ 510 MHz (China)
- 433 MHz
