Ethernet RS-422/485 Adapter

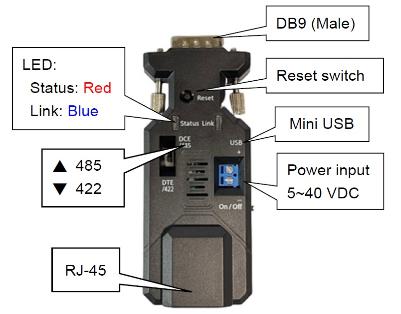

Ethernet RS-422/485 adapter
Model: S2E485-ESP32
Send Inquiry
Email:
Contents:
1. Processor: Xtensa® dual-core 32-bit LX6 microprocessors
2. Frequency: 240 MHz
3. 520 KB SRAM
4. 448 KB ROM
5. RJ-45: 10/100 Mbps, MDI/MDIX, auto switch between cross and direct
connection
6. Protection: 2KV electromagnetism isolation
7. Network Protocol: IP, TCP, UDP, DHCP, DNS, HTTP, ARP, ICMP, Web
socket, Httpd client
8. Data Bits: 5, 6, 7, 8
9. Stop Bit: 1, 1.5, 2
10. Parity: None, Even, Odd
11. Baud Rate: 80 ~ 5000000 bps
12. Flow Control: RTS/CTS
13. Working Current: 30~68 mA @ 240 MHz
14. Support MDI/MDIX
15. Support up to 4 link from client when act as TCP Server, same data will
be send to all client.
16. Support Keep alive, detect a dead link quickly and make connection
more stable.

Remark: All contents are subject to change w/o notice.
■ PLC, CNC
■ LED, Sensor, remote control
■ Security
■ Industrial automation
■ Cloud
Applications:
Specifications:
Profiles:
E-Mail:
Sales@uconnect.com.tw

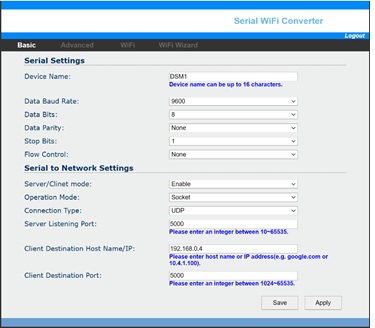

Web page configuration:
Test APP
Web page configuration:
Ethernet to serial port converter, RS232, RS-232, RS485, RS-485, Virtual com port, Serial to Ethernet
Test Video
