BLE V5.0 RS-232 beacon reader - iBeacon, TPMS
Send Inquiry
Email:
Contents:
User Manual
New Bluetooth V5.0 BLE RS-232 beacon reader
Model: S2B5232RE (External Dipole Antenna)
Model: S2B5232RI (Internal Antenna) (Option)
Specifications:
E-Mail:
Sales@uconnect.com.tw
Male DB9:

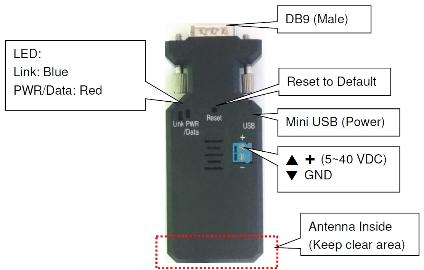

Top View:

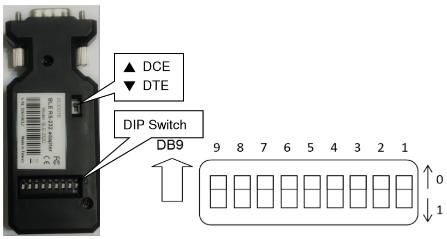

Rear View:
The Bluetooth V5.0 BLE RS232 adapter
supports the iBeacon, Eddystone, Altbeacon,
TPMS and etc.. The report packet format will
be configured by the DIP switch setting.
The reader will be customized the filtering
algorithm, report packet format or hardware.
Test Video
1. Baud Rate: 9,600 bps (Default), 115,299 bps (option)
3. Parity: none
4. Stop bit: 1
5. Data bit: 8
6. Range: 70 m ,in open space (depend on actual environment)
7. Signal: TxD, RxD, GND
8. RS-232 Interface: D_SUB 9-pin female
9. Antenna Gain: max. 2 dB
10. Profiles: BLE Observer
11. Frequency: 2.400 to 2.4835 GHz
12. Tx. Power: Max. 4 dBm
13. Rx. Sensitivity: -96 dBm typical
14. Power Supply: 5~40 VDC
15. Current Consumption: max. 30 mAh (for reference)
16. Operation Temperature: –40 °C to +85 °C
17. Dimensions: 81.6 mm (L) x 31.75 mm (W) x 17 mm (H)
DIP switch setting of packet format:
Bridge for the beacon reader:
1. WiFi RS-232
2. Ethernet RS-232
