Real Time Location System (RTLS) with BLE Active RFID
Model: RTLS
1. Introduction:
The LBS system provides the functions to support the indoor real time
locating. It includes Deployment, Middleware, Monitoring and Data analysis
 Indoor location system: School, Baggage, Pet, Asset, Vehicle
 Access control: Garage, Enterprises, Bank, Vehicle, Factory, Hospital,
Superstore, School, Warehouse
 Security: Antique, Paintings, Valued goods, Luxury, Asset, Equipments

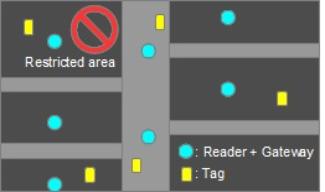

The reader will sense the tag and report the packet for location estimation.
The tag ID, reader ID and RSSI between tag and reader will be used for the
estimation of the position and distance.
Test Video
RTLS (Real Time Location System)
