Bluetooth V4.0 BLE Infrared Thermometer Sensor
©2015 All rights reserved by Uconnect
The module is integrated the Bluetooth low energy (BLE)
single mode module and infrared thermometer sensor.
The BLE will broadcast the sensor value by beacon
signal. The module will support the iOS, Android,
Microsoft and most mobile platform.
Applications:
Home Automation
Factory Automation
Smart Home
Security
Environment monitoring
single mode module and infrared thermometer sensor.
The BLE will broadcast the sensor value by beacon
signal. The module will support the iOS, Android,
Microsoft and most mobile platform.
Applications:
Home Automation
Factory Automation
Smart Home
Security
Environment monitoring
| | | | | | | | | | |
Contact Us: Sales@uconnect.com.tw
Bluetooth V4.0 BLE infrared thermometer Sensor
(Model: BLE-IR)
(Model: BLE-IR)
Microcontroller: 32-bit ARM Cortex M0 ,Nordic(TM) Solution
On-air data rate: 250 kbps, 1 Mbps or 2 Mbps
Modulation: GFSK
Output power: Programmable: +4 to -20dBm in 4dB steps
Sensitivity:
-93dBm Bluetooth low energy
-96dBm at 250kb
-90dBm at 1Mbs
-85dBm at 2Mbs
Radio current consumption LDO at 1.8V:
16mA – TX at +4dBM output power
10.5mA – TX at 0dBm output power
13mA – RX at 1Mbs
Radio current consumption DC-DC at 3V:
10.5mA – TX at +4dBm output power
8.1mA – TX at 0dBm output power
9.5mA – RX at 1Mbs
System current consumption:
420nA – No RAM retention
530nA - 8k RAM retention
2μA – All peripherals in IDLE mode
Hardware Security: 128-bit AES ECB/CCM/AAR co-processor
On-air data rate: 250 kbps, 1 Mbps or 2 Mbps
Modulation: GFSK
Output power: Programmable: +4 to -20dBm in 4dB steps
Sensitivity:
-93dBm Bluetooth low energy
-96dBm at 250kb
-90dBm at 1Mbs
-85dBm at 2Mbs
Radio current consumption LDO at 1.8V:
16mA – TX at +4dBM output power
10.5mA – TX at 0dBm output power
13mA – RX at 1Mbs
Radio current consumption DC-DC at 3V:
10.5mA – TX at +4dBm output power
8.1mA – TX at 0dBm output power
9.5mA – RX at 1Mbs
System current consumption:
420nA – No RAM retention
530nA - 8k RAM retention
2μA – All peripherals in IDLE mode
Hardware Security: 128-bit AES ECB/CCM/AAR co-processor
BLE Specifications:
Beacon packet format:
|
Datasheet
Infrared thermometer Sensor Specifications:
Manufacturer: Melexis MLX90614 series
-40 to +85°C for sensor temperature
-70 to +380°C for object temperature
High accuracy of 0.5°C over wide temperature range (0 to +50°C for both Ta and To)
Measurement resolution of 0.02°C
-40 to +85°C for sensor temperature
-70 to +380°C for object temperature
High accuracy of 0.5°C over wide temperature range (0 to +50°C for both Ta and To)
Measurement resolution of 0.02°C
Reader UART is fixed at 115200,8,N,1
example:
$1,E2C69918FD94,1,FFC98B7FC1A9,32,0,0,[Sensor data],-55#

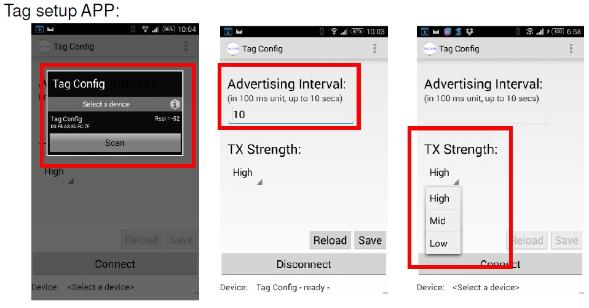

Default Tag Adv Period: 1000 ms
Panic Mode Tag Adv Period: 300 ms
Test Video:
http://youtu.be/Vs_hOSBHfns
example:
$1,E2C69918FD94,1,FFC98B7FC1A9,32,0,0,[Sensor data],-55#
Default Tag Adv Period: 1000 ms
Panic Mode Tag Adv Period: 300 ms
Test Video:
http://youtu.be/Vs_hOSBHfns
