Bluetooth BLE Beacon RS-485 Reader
Model: BLE-485R
The reader will read the BLE beacon tag and report the
packet via RS-485 interface. The reader will filter the
iBeacon, Eddystone, Altbeacon or Uconnect Tag. The
DIP switch will select the type of reader. The packet include
the reader ID which will identify the position information.
Applications:
1. Uconnect Active RFID for RTLS applications
2. iBeacon, Eddystone, Altbeacon beacon filter
3. The packet information include the reader ID, Beacon ID
and RSSI value
Model: BLE-485R
The reader will read the BLE beacon tag and report the
packet via RS-485 interface. The reader will filter the
iBeacon, Eddystone, Altbeacon or Uconnect Tag. The
DIP switch will select the type of reader. The packet include
the reader ID which will identify the position information.
Applications:
1. Uconnect Active RFID for RTLS applications
2. iBeacon, Eddystone, Altbeacon beacon filter
3. The packet information include the reader ID, Beacon ID
and RSSI value
1. COM port: 9,600 bps,8 data bits,One stop bit,None parity,w/o flow control
2. Range: 50 m ,in open space for reference only
3. Bluetooth BLE V4.x
4. RS-485 Interface: 4P Terminal block
5. Frequency: 2.400 to 2.4835 GHz
6. Tx. Power: Max. 3 dBm
7. Rx. Sensitivity: -89 dBm typical
8. Power Supply: 5~27VDC, 1A Max
9. Current Consumption: up to 30 mAh
10. Operation Temperature: –40 °C to +85 °C
11. Dimensions: 81.6 mm (L) x 31.75 mm (W) x 17 mm (H)
12. Antenna Gain: Chip antenna max. 2 dB
2. Range: 50 m ,in open space for reference only
3. Bluetooth BLE V4.x
4. RS-485 Interface: 4P Terminal block
5. Frequency: 2.400 to 2.4835 GHz
6. Tx. Power: Max. 3 dBm
7. Rx. Sensitivity: -89 dBm typical
8. Power Supply: 5~27VDC, 1A Max
9. Current Consumption: up to 30 mAh
10. Operation Temperature: –40 °C to +85 °C
11. Dimensions: 81.6 mm (L) x 31.75 mm (W) x 17 mm (H)
12. Antenna Gain: Chip antenna max. 2 dB
Specifications:
| | | | |
E-Mail:
Sales@uconnect.com.tw
Sales@uconnect.com.tw
Beacon Packet Format:
All DIP switch is “0” by default. The reader will filter “Uconnect”, “iBeacon”,
“Eddystone” or “Altbeacon”.
Example:
$1,00A05053849D,1,00A050172A2C,30,0,0,,-71#
$2,00A05053849D,0,58E72F0CEF88,0,0,0,0,-48#
$3,00A05053849D,0,772BB24ADC36,0,0,0,0,-48#
$4,00A05053849D,0,012AC345EB45,0,0,0,0,-49#
DIP No. 1 is set to “1” (On): Raw packet data
Prefix: “$”
Raw packet data is between “$” and “CR”
Suffix: Carriage Return
Example:
$1EFF0600010920008DC8BE90AEB3B032E0B9F89A0CCED9FFFAE3BDBFB2DB75
$0201061BFF570100F8398F0A43BE1D146A75669AC8FB3A7601E1917E545CAB
$1EFF0600010920008DC8BE90AEB3B032E0B9F89A0CCED9FFFAE3BDBFB2DB75
$1EFF060001092000111B6E4CE83EB1E445E8B104838CB749E14A8BE404CB4A
“Eddystone” or “Altbeacon”.
Example:
$1,00A05053849D,1,00A050172A2C,30,0,0,,-71#
$2,00A05053849D,0,58E72F0CEF88,0,0,0,0,-48#
$3,00A05053849D,0,772BB24ADC36,0,0,0,0,-48#
$4,00A05053849D,0,012AC345EB45,0,0,0,0,-49#
DIP No. 1 is set to “1” (On): Raw packet data
Prefix: “$”
Raw packet data is between “$” and “CR”
Suffix: Carriage Return
Example:
$1EFF0600010920008DC8BE90AEB3B032E0B9F89A0CCED9FFFAE3BDBFB2DB75
$0201061BFF570100F8398F0A43BE1D146A75669AC8FB3A7601E1917E545CAB
$1EFF0600010920008DC8BE90AEB3B032E0B9F89A0CCED9FFFAE3BDBFB2DB75
$1EFF060001092000111B6E4CE83EB1E445E8B104838CB749E14A8BE404CB4A

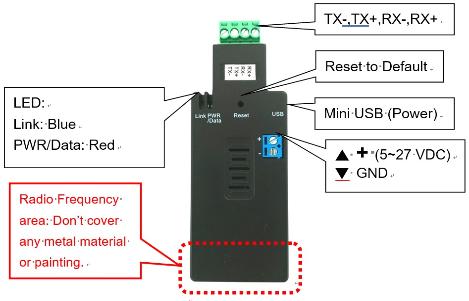

Top View:
Rear View:
RS485 interface: 2 wires connection (TX+ & TX-)
Wireless or Wire communication integration: (option, please contact the supplier)
1. WiFi RS-485 (Model: WA-485E)
2. Ethernet RS-485 (Model: EA-485)
3. LoRa or Wi-Sun RS-485 converter (Model: LORA-485, Wi-Sun-485)
1. WiFi RS-485 (Model: WA-485E)
2. Ethernet RS-485 (Model: EA-485)
3. LoRa or Wi-Sun RS-485 converter (Model: LORA-485, Wi-Sun-485)
|
