Bluetooth V4.2 BLE RS-232 adapter
|
Bluetooth V4.2 BLE RS-422/485 adapter
Model: BLE-485C
Model: BLE-485C
1. Baud Rate: Supports 1.2/2.4/4.8/9.6/19.2/38.4/57.6/115.2/230.4/460.
8/921.6 Kbps (Defalut: 9,600 bps)
2. Parity: none/even/odd
3. Stop bit: 1/1.5/2
4. Data bit: 7/8
5. Range: 50 m ,in open space for reference only
6. Interface: RS-422 or RS-485
7. Antenna Gain: Chip antenna max. 2 dB
8. Profiles: GATT Serial
9. Frequency: 2.400 to 2.4835 GHz
10. Tx. Power: Max. 3 dBm
11. Rx. Sensitivity: -89 dBm typical
12. Power Supply: 5~27VDC, 1A Max
13. Current Consumption: max. 30 mAh (for reference)
14. Operation Temperature: –40 °C to +85 °C
15. Dimensions: 81.6 mm (L) x 31.75 mm (W) x 17 mm (H)
8/921.6 Kbps (Defalut: 9,600 bps)
2. Parity: none/even/odd
3. Stop bit: 1/1.5/2
4. Data bit: 7/8
5. Range: 50 m ,in open space for reference only
6. Interface: RS-422 or RS-485
7. Antenna Gain: Chip antenna max. 2 dB
8. Profiles: GATT Serial
9. Frequency: 2.400 to 2.4835 GHz
10. Tx. Power: Max. 3 dBm
11. Rx. Sensitivity: -89 dBm typical
12. Power Supply: 5~27VDC, 1A Max
13. Current Consumption: max. 30 mAh (for reference)
14. Operation Temperature: –40 °C to +85 °C
15. Dimensions: 81.6 mm (L) x 31.75 mm (W) x 17 mm (H)
Specifications:
 |  |  |  |  |
E-Mail:
Sales@uconnect.com.tw
Sales@uconnect.com.tw

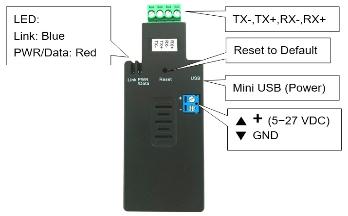

Top view:

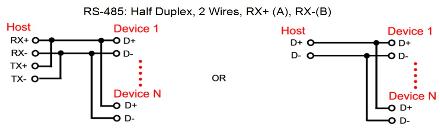

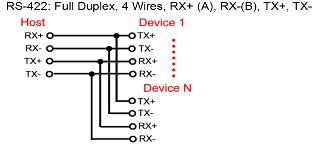

Wire connection:
©2018 All rights reserved by Uconnect
| | | | |
Contact Us: Sales@uconnect.com.tw
|
The Bluetooth V4.2 BLE RS485 adapter will link with OS
platform, ex. iOS, Android, Windows or etc.. The data bit,
baud rate, parity, stop bit, flow control, central or peripheral
will be configured by the command, DIP switch or APP. The
adapter will support small to medium quantity of data. The
continuous bulk data transmission is not available for the
adapter.
The Bluetooth V4.2 BLE support the GATT service. The
profile is different with the V2.1 SPP, serial port profile. It will
need the APP. The sample code will be offered with the
products.
platform, ex. iOS, Android, Windows or etc.. The data bit,
baud rate, parity, stop bit, flow control, central or peripheral
will be configured by the command, DIP switch or APP. The
adapter will support small to medium quantity of data. The
continuous bulk data transmission is not available for the
adapter.
The Bluetooth V4.2 BLE support the GATT service. The
profile is different with the V2.1 SPP, serial port profile. It will
need the APP. The sample code will be offered with the
products.
Configuration Interfaces: (Please choose 1 of 3 ways)

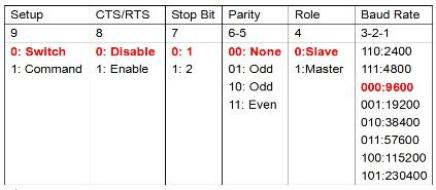

1. DIP Switch on the Rear side (Default, please refer the pin no. on the above
picture.)
1. DIP Switch on the Rear side (Default, please refer the pin no. on the above
picture.)
Configuration APP:
1. Baud rate, Parity, Stop bit, Flow control
2. Data communication test
3. Enable central to link peripheral
2. Data communication test
3. Enable central to link peripheral
2. AT command via RS-485 interface (Please check the user manual)

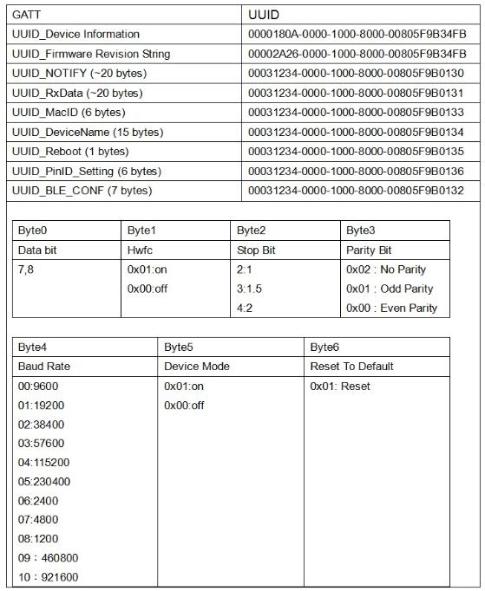

3. APP via GATT service
3. APP via GATT service

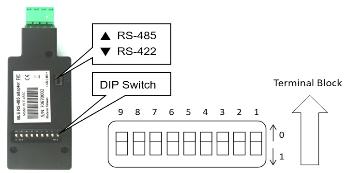

Rear view:
|
