The TX and RX modules are designed by Bluetooth
V4.1 BLE technology. The tag will broadcast the
UUID and customized message, we call the packet.
The receiving side, the host, will sense the packet comes from the TX side.
The external data will be added from the UART interface of the TX and RX
sides. The sensor data will be added from UART and broadcast. The RX
side will sense the data and report the packet from UART interface. The TX
side will become RX side when data transmitted.
Applications:
Location system: Asset, Passenger, Patient, Trailer
Access control: Garage, Enterprises, Bank, Vehicle, Factory, Hospital,
Superstore, School, Warehouse
Logistic management, Cargo tracking, Airport baggage management
Local Area Real Time Location Systems (RTLS)
Asset Management, Internet of Things (IOT) applications
V4.1 BLE technology. The tag will broadcast the
UUID and customized message, we call the packet.
The receiving side, the host, will sense the packet comes from the TX side.
The external data will be added from the UART interface of the TX and RX
sides. The sensor data will be added from UART and broadcast. The RX
side will sense the data and report the packet from UART interface. The TX
side will become RX side when data transmitted.
Applications:
Location system: Asset, Passenger, Patient, Trailer
Access control: Garage, Enterprises, Bank, Vehicle, Factory, Hospital,
Superstore, School, Warehouse
Logistic management, Cargo tracking, Airport baggage management
Local Area Real Time Location Systems (RTLS)
Asset Management, Internet of Things (IOT) applications
|
 |
| |
 |
| |
 |
| |
 |
| |
 |
Home --> Active RFID --> Module
Notice: New Bluetooth V4.1 BLE System
Active RFID, RTLS (Real Time Location System)
Bluetooth V4.1 BLE TX/RX Module
(Model: BLEM-TR)
(Model: BLEM-TR)
Frequency band: 2.4GHz ISM ( 2.40000 – 2.4835GHz)
Microcontroller: 32-bit ARM Cortex M0 ,Nordic(TM) Solution
On-air data rate: 250 kbps, 1 Mbps or 2 Mbps
Modulation: GFSK
Output power: Programmable: +4 to -20dBm in 4dB steps
Sensitivity:
-93dBm Bluetooth low energy
-96dBm at 250kb
-90dBm at 1Mbs
-85dBm at 2Mbs
Radio current consumption LDO at 1.8V:
16mA – TX at +4dBM output power
10.5mA – TX at 0dBm output power
13mA – RX at 1Mbs
Radio current consumption DC-DC at 3V:
10.5mA – TX at +4dBm output power
8.1mA – TX at 0dBm output power
9.5mA – RX at 1Mbs
System current consumption:
420nA – No RAM retention
530nA - 8k RAM retention
2μA – All peripherals in IDLE mode
Hardware Security: 128-bit AES ECB/CCM/AAR co-processor
Microcontroller: 32-bit ARM Cortex M0 ,Nordic(TM) Solution
On-air data rate: 250 kbps, 1 Mbps or 2 Mbps
Modulation: GFSK
Output power: Programmable: +4 to -20dBm in 4dB steps
Sensitivity:
-93dBm Bluetooth low energy
-96dBm at 250kb
-90dBm at 1Mbs
-85dBm at 2Mbs
Radio current consumption LDO at 1.8V:
16mA – TX at +4dBM output power
10.5mA – TX at 0dBm output power
13mA – RX at 1Mbs
Radio current consumption DC-DC at 3V:
10.5mA – TX at +4dBm output power
8.1mA – TX at 0dBm output power
9.5mA – RX at 1Mbs
System current consumption:
420nA – No RAM retention
530nA - 8k RAM retention
2μA – All peripherals in IDLE mode
Hardware Security: 128-bit AES ECB/CCM/AAR co-processor

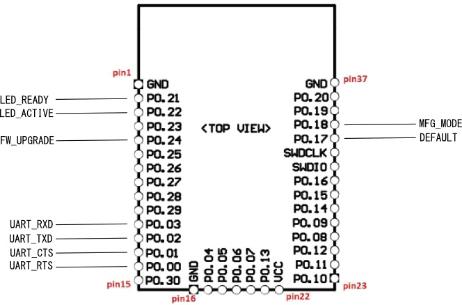

Specifications:

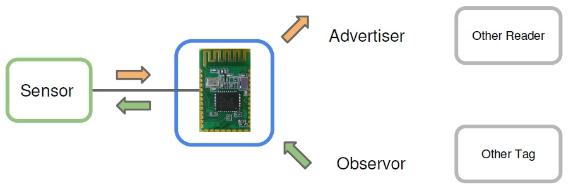

Profile:
Architecture:

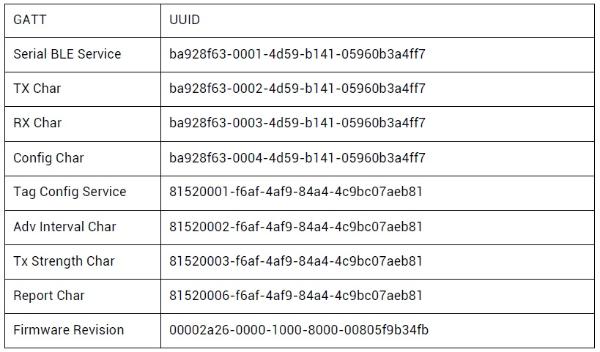

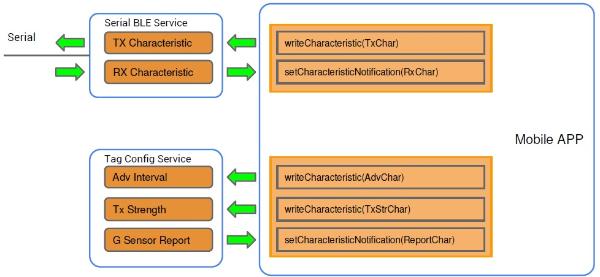

Gatt service:
|
|
| | | | |
