Active RFID, RTLS (Real Time Location System)
3. Interfaces:
- RS-232 DB9 connector
- RS-485 or RS-485 Modbus RTU protocol, Terminal block type
- Default: 9,600 bps, 8 data bits, 1 stop bit, None parity, w/o Flow control
1. Features:
- Rich sensor options: Temperature, Humidity, PM2.5, CO, CO2, CH2O,
VOC, pressure, RFID
- BLE beacon
- Support external I/O control interface, ex. PIR or Relay
- Support Real Time Location System (RTLS) applications
- Configurable auto report period and power level
- Support WiFi or Ethernet
- Support WiFi AP or Station
- Support TCP server or Client

2. Applications:
- Location system: Asset, Passenger, Patient, Trailer
- Access control: Garage, Enterprises, Bank, Vehicle, Factory, Hospital,
- Superstore, School, Warehouse
- Logistic management, Cargo tracking, Airport baggage management
- Local Area Real Time Location Systems (RTLS)
- Asset Management, Internet of Things (IOT) applications
Packet Format:
example:
$1,E2C69918FD94,1,FFC98B7FC1A9,32,1,1,,-55#
$1,E2C69918FD94,1,FFC98B7FC1A9,32,1,1,,-54#
$1,E2C69918FD94,1,FFC98B7FC1A9,32,1,1,,-63#
$1,E2C69918FD94,1,FFC98B7FC1A9,32,0,0,,-56#

Default Tag Adv Period: 1000 ms
E-Mail:
[Sensor]
[Temperature]
[I/O]
RFID: Mifare
PM25: PM2.5
CO: Carbon
monoxide
CO2: Carbon dioxide
CH2O:
Formaldehyde
VOC: Volatile
organic compounds
(Empty): N/A
TH: Temperature/Humidity
THP:
Temperature/Humidity/Pressure
NTC: NTC Temperature sensor
(Empty): N/A
PIR: PIR
sensor
DIO:Digital I/O
(Empty): N/A
Model: S-[Sensor]-[Temperature]-[I/O]
EX: S-PM25-TH-DIO, S-THP, S-CO2-PIR

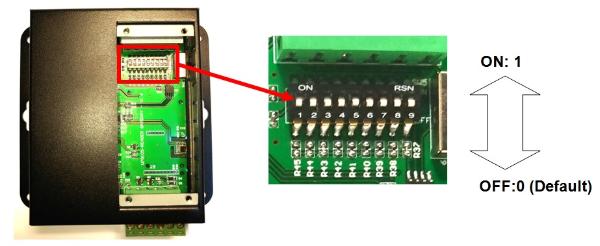

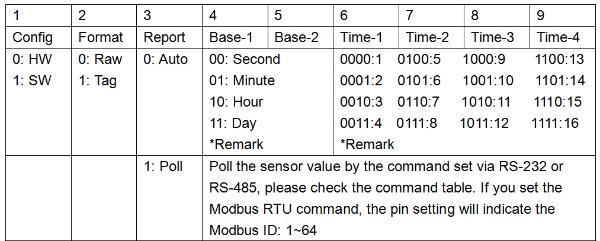

DIP Switch setting:
Sensor to RS-232, RS485 Modbus RTU Transmitter

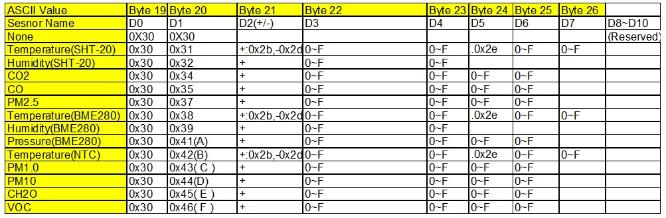

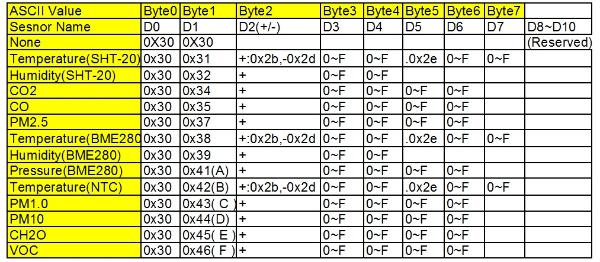

Sensor Value:
©2017 All rights reserved by Uconnect
Inquire the product: Sales@uconnect.com.tw
Packet Format-2: Raw data (set by DIP pin-2)
