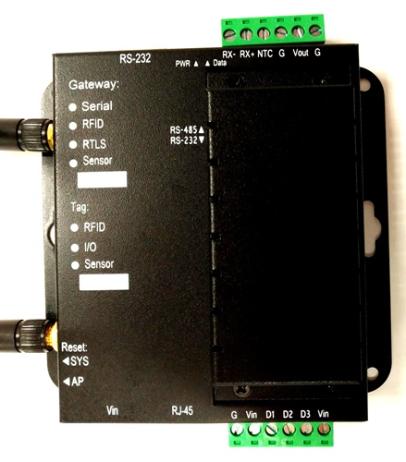

Bluetooth BLE Active RFID Reader Gateway
E-Mail:
Sales@uconnect.com.tw
1. BLE Reader:
- Microcontroller: 32-bit ARM Cortex M0
- Range: max. 50 m in open space
- TX Power: Max. 3 dBm
- TX current consumption of 15.6 mA (radio only, 0 dbm)
- Operation Temperature: –40 °C to +70 °C
- Dimensions: 5.5 × 4 × 0.8 cm
- Antenna Gain: max. 2 dB

2. AP:
- IEEE 802.11 b/g/n standards compliant
- Frequency Range: 2.400 ~ 2.4835GHz
- Transmit Power(EIRP): 11n HT40 MCS7(+13 dBm +/- 1 dBm), 11g OFDM
(+15 dBm +/- 1 dBm), 11b CCK (+18 dBm +/- 1 dBm)
- Security: 64/128-bits WEP, TKIP,WPA, WPA2, AES
- Receiver Sensitivity: -66dBm at HT40 MCS7, -73dBm at 54Mpbs, -86dBm
at 11Mpbs
- Multi-modes: AP/router/gateway/bridge/client
- Support WiFi repeater (AP-Client)
- Built-in web server configuration
- Operation Current: 200mA (Stand-by), 350mA (Normal)
- Networking (AP/router): DHCP Client/Relay/Server, Dynamic DNS, NTP
Client, DNS Cache/Proxy, Firewall
- WiFi: 1T1R, 20MHz/40MHz bandwidth, Spport multiple SSID & WPS
- CPU clock rate up to 400MHz
- 10/100 MHz RJ-45
Specifications:

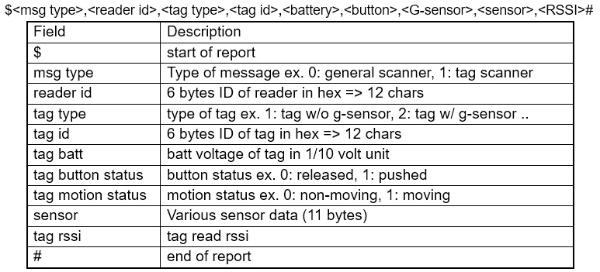

Active RFID Packet Format: (will be customized)
example:
$1,E2C69918FD94,1,FFC98B7FC1A9,32,0,0,,-55#
$1,E2C69918FD94,1,FFC98B7FC1A9,32,1,1,,-55#
$1,E2C69918FD94,1,FFC98B7FC1A9,32,1,1,,-54#
$1,E2C69918FD94,1,FFC98B7FC1A9,32,1,1,,-63#
$1,E2C69918FD94,1,FFC98B7FC1A9,32,0,0,,-56#

Default Tag Adv Period: 1000 ms
Panic Mode Tag Adv Period: 300 ms

Test Video:
http://youtu.be/Vs_hOSBHfns
- Scan all BLE beacon or filter the specific packet, ex. iBeacon
(trade mark of Apple). The packet will be bridge to the Internet or
cloud.
- Integrate with Active RFID reader
- Internet or Cloud link via Wifi or Ethernet
- Support external I/O control interface, ex. PIR or Relay
- TCP server or Client
- AP or Station network

2. Applications:
- Location system: Asset, Passenger, Patient, Trailer
- Access control: Garage, Enterprises, Bank, Vehicle, Factory,
Hospital,
- Superstore, School, Warehouse
- Logistic management, Cargo tracking, Airport baggage
management
- Local Area Real Time Location Systems (RTLS)
- Asset Management, Internet of Things (IOT) applications
Profile:
Model: RTLS-R-G
