Features:
1. RS-232/485 interface
2. 10/100 Mbps Ethernet port
3. Supports RS485 Modbus TCP RTU
4. Terminal block for RS-485 connection
5. Digital I/O (option)
6. Web page configuration
Specifications:
1. Operation voltage: 7~20VDC.
2. RS232 Interface
Baud Rate: 1200 bps up to 921600 bps
Data bit: 5, 6, 7, 8
Parity: None, Even, Odd
Stop Bits : 1, 1.5
Without Flow Control
3. Ethernet Interface
10Base-T, 100Base-TX
Speed/Duplex : Auto-negotiation 10/100Mbps, Full/Half duplex
Protocols Supported : ARP, IP, UDP, TCP, BootP
Network Services : DHCP, DNS, PPPoE, TFTP, HTTP, UDP Broadcasting
Auto-MDIX : Yes
Support Virtual Serial Port (VSP) driver (3rd party software, not included)
Download
Ethernet to RS-232/422/485 Gateway
Ethernet to Serial Gateway (RS-232/485)
Model: IP-SII
Send Inquiry
Email:
Contents:
Applications:
1. Factory, Building, Home Automation
2. Internet gateway
3. Internet of Things (IOT)
E-Mail:
Sales@uconnect.com.tw

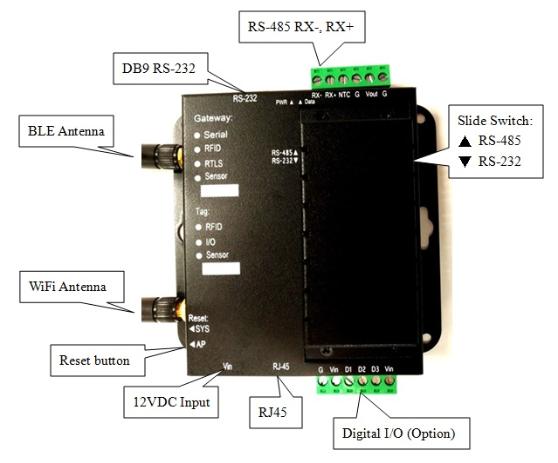

Profiles: Top view

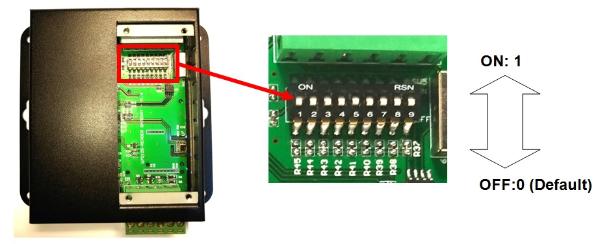

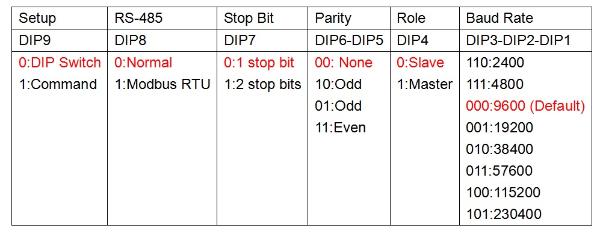

DIP switch setting:
Test APP
