Active RFID, RTLS (Real Time Location System)
Bluetooth V4 BLE Active RFID (Sensor) Tag
      or iBeacon (Apple Trademark)
Test Video
Specifications:
* Frequency band: 2.4GHz ISM ( 2.40000 – 2.4835GHz)
* Microcontroller: 32-bit ARM Cortex M0
* Range: max. 50 m in open space
* TX Power: Max. 3 dBm
* TX current consumption of 15.6 mA (radio only, 0 dbm)
* Operation Temperature: –40 °C to +70 °C
* Dimensions: 5.5 × 4 × 0.8 cm
* Antenna Gain: max. 2 dB
Application:
* Location system: Asset, Passenger, Patient, Trailer
* Access control: Garage, Enterprises, Bank, Vehicle, Factory, Hospital, Super market
* School, Warehouse
* Logistic management, Cargo tracking, Airport baggage management
* Local Area Real Time Location Systems (RTLS)
* Asset Management, Internet of Things (IOT) application
* Customized packet format: iBeacon (Trademark of APPLE) or proprietary
* LBS, Asset Management, Personal Tracker
* Access control
* IOT, SCADA, WSN(Wireless sensor network)

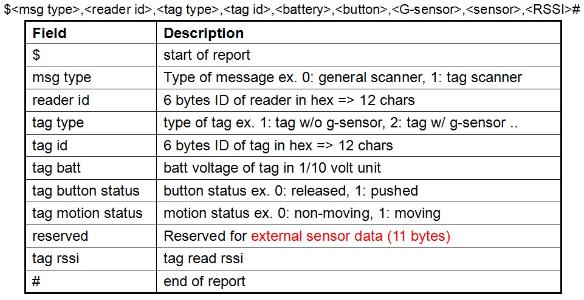

Packet Format:
example:
$1,E2C69918FD94,1,FFC98B7FC1A9,32,0,0,,-55#
$1,E2C69918FD94,1,FFC98B7FC1A9,32,1,1,,-55#
$1,E2C69918FD94,1,FFC98B7FC1A9,32,1,1,,-54#
$1,E2C69918FD94,1,FFC98B7FC1A9,32,1,1,,-63#
$1,E2C69918FD94,1,FFC98B7FC1A9,32,0,0,,-56#

Default Tag Adv Period: 1000 ms
Panic Mode Tag Adv Period: 300 ms
Remark: If you need the configuration Android APP, please contact the supplier.
APP Download
E-Mail:
Battery
iBeacon
w G-sensor
w/o G-sensor
Temperature/Humidity
NTC
CR-2032 x 1
BLE-T1-i
BLE-T1-G
BLE-T1
BLE-T1-TH
BLE-T1-NTC
CR-2032 x 2
BLE-T2-i
BLE-T2-G
BLE-T2
N/A
NTC
CR-2032x1
CR-2032x2
Model No.:
Packet Format-2: Raw data (set by DIP pin-2)
Sensor Value:
