Bluetooth BLE Beacon RS-232 Reader
Model: BLE-232R

The reader will read the BLE beacon tag and report the
packet via RS-232 interface. The reader will filter the iBeacon,
Eddystone, Altbeacon or Uconnect Tag. The DIP switch will
select the type of reader. The packet include the reader ID
which will identify the position information.

Applications:
1. Uconnect Active RFID for RTLS applications
2. iBeacon, Eddystone, Altbeacon beacon filter
3. The packet information include the reader ID, Beacon ID
and RSSI value
1. COM port: 9,600 bps,8 data bits,One stop bit,None parity,w/o flow control
2. Range: 50 m ,in open space for reference only
3. Bluetooth BLE V4.x
4. RS-232 Interface: D_SUB 9-pin female
5. Frequency: 2.400 to 2.4835 GHz
6. Tx. Power: Max. 3 dBm
7. Rx. Sensitivity: -89 dBm typical
8. Power Supply: 5~27VDC, 1A Max
9. Current Consumption: up to 30 mAh
10. Operation Temperature: –40 °C to +85 °C
11. Dimensions: 81.6 mm (L) x 31.75 mm (W) x 17 mm (H)
12. Antenna Gain: Chip antenna max. 2 dB
Specifications:
E-Mail:
Sales@uconnect.com.tw
Screw & Nut:

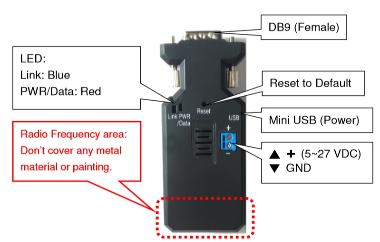

Top View:

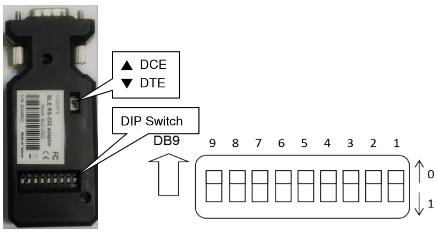

Rear View:
Wireless or Wire communication integration: (option)
1. WiFi RS-232 (Model: WA-232E)
2. Ethernet RS-232 (Model: EA-232)
3, Bluetooth V2.1 SPP RS-232 (Model: BT-232B-E)
4. LoRa or Wi-Sun RS-232 (Model: LORA-232 or Wi-Sun-232)

The reader will connect with one of the above communication to bridge the tag data
to the controller.
Beacon Packet Format:
All DIP switch is “0” by default. The reader will filter “Uconnect”, “iBeacon”,
“Eddystone” or “Altbeacon”.
Example:
$1,00A05053849D,1,00A050172A2C,30,0,0,,-71#
$2,00A05053849D,0,58E72F0CEF88,0,0,0,0,-48#
$3,00A05053849D,0,772BB24ADC36,0,0,0,0,-48#
$4,00A05053849D,0,012AC345EB45,0,0,0,0,-49#

DIP No. 1 is set to “1” (On): Raw packet data
Prefix: “$”
Raw packet data is between “$” and “CR”
Suffix: Carriage Return
Example:
$1EFF0600010920008DC8BE90AEB3B032E0B9F89A0CCED9FFFAE3BDBFB2DB75
$0201061BFF570100F8398F0A43BE1D146A75669AC8FB3A7601E1917E545CAB
$1EFF0600010920008DC8BE90AEB3B032E0B9F89A0CCED9FFFAE3BDBFB2DB75
$1EFF060001092000111B6E4CE83EB1E445E8B104838CB749E14A8BE404CB4A
