Bluetooth V4.x BLE RS-232 adapter
1. COM port:9,500 bps,8 data bits,One stop bit,None parity,w/o flow control
2. Range: 50 m ,in open space for reference only
3. Standard: Bluetooth specification version BLE V4.1
4. RS-232 Interface: D_SUB 9-pin female
5. Profiles: GATT Serial
6. Frequency: 2.400 to 2.4835 GHz
7. Tx. Power: Max. 3 dBm
8. Rx. Sensitivity: -89 dBm typical
9. Power Supply: 5~27VDC, 1.5A Max
10. Current Consumption: 100 mAh (for reference)
11. Operation Temperature: –40 °C to +85 °C
12. Dimensions: 81.6 mm (L) x 31.75 mm (W) x 17 mm (H)
13. Antenna Gain: Chip antenna max. 2 dB
Specifications:
E-Mail:
Sales@uconnect.com.tw
Model no.
Function
BLE-232B
RS-232 serial converter, Link mode
BLE-232B-N
RS-232 serial converter, 1-N
broadcast  mode
BLE-232B/C-R
RS-232 Beacon reader, iBeacon,
Active RFID, All Beacon
BLE-232B-M
RS-232 serial converter, Mesh
Active RFID Packet Format: (will be customized)
example:
$1,E2C69918FD94,1,FFC98B7FC1A9,32,0,0,,-55#
$1,E2C69918FD94,1,FFC98B7FC1A9,32,1,1,,-55#
$1,E2C69918FD94,1,FFC98B7FC1A9,32,1,1,,-54#
$1,E2C69918FD94,1,FFC98B7FC1A9,32,1,1,,-63#
$1,E2C69918FD94,1,FFC98B7FC1A9,32,0,0,,-56#

Default Tag Adv Period: 1000 ms
Panic Mode Tag Adv Period: 300 ms

Test Video:
http://youtu.be/Vs_hOSBHfns
Screw & Nut:

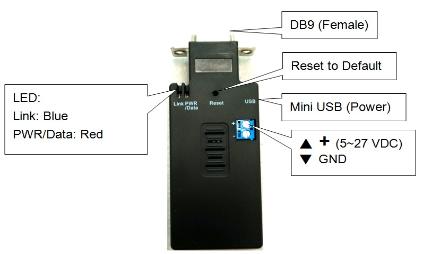

Top View:

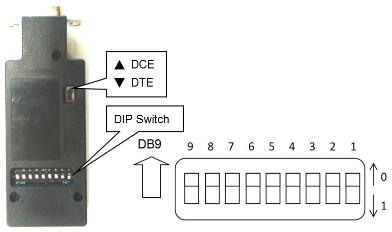

Rear View:
DIP switch setting for Beacon format option (DIP-9, DIP-8)
00: Active RFID for RTLS
01: iBeacon (Trade mark of APPLE)
10: Reserved for customized format
11: All beacon
Beacon format: Set by DIP switch on the rear side:
1. Active RFID for RTLS
2. iBeacon (Trade mark of APPLE)
3. All BLE beacon
4. Reserved for customized format
